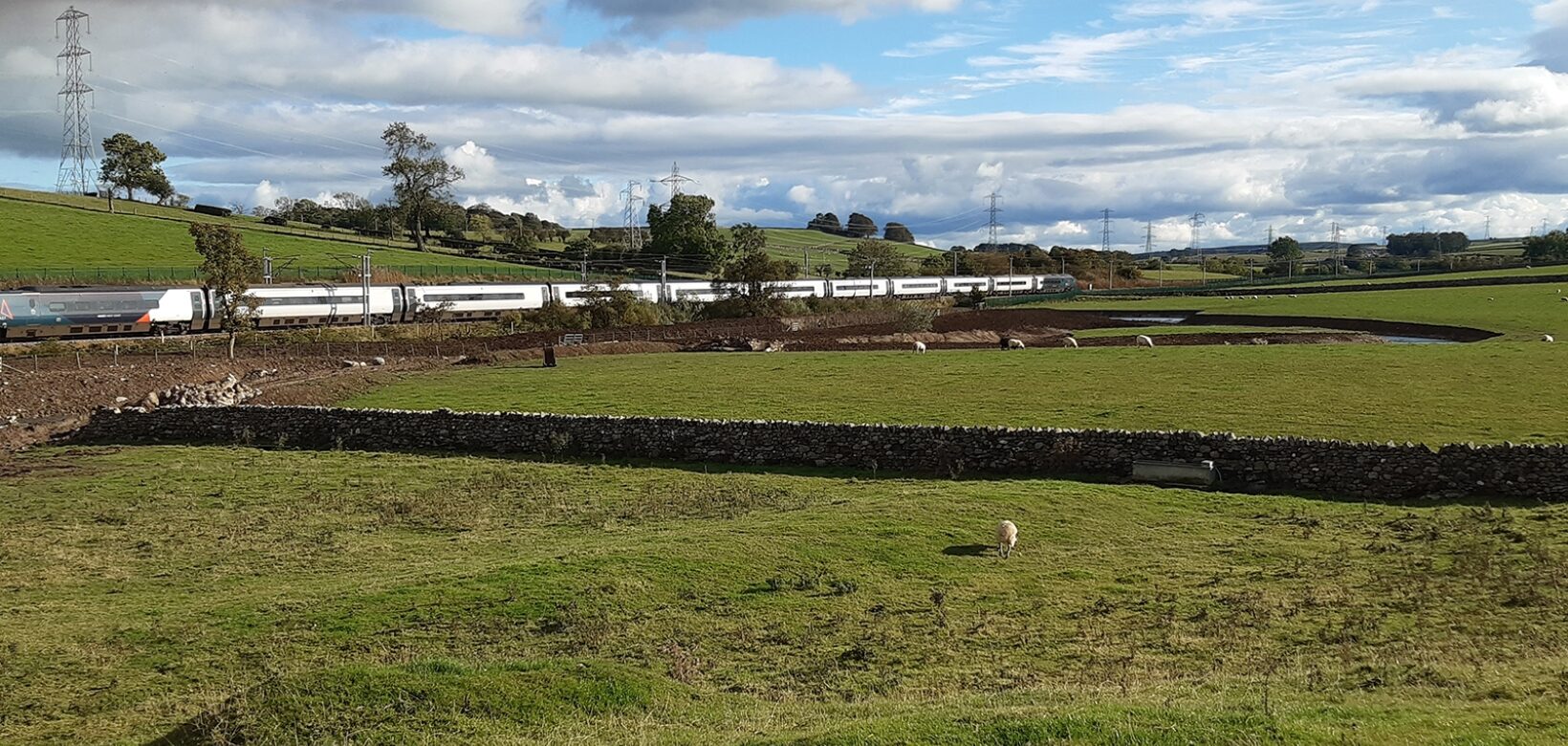

View across green field with grazing sheep and drystone wall to passing train on railway line.

Thrimby river restoration

We worked in partnership with the Environment Agency, Natural England, the landowner, Viscount Lowther Trust, tenant farmer, Matthew Blair, Blair Farming Ltd and Network Rail on a major river restoration scheme to safeguard this vital transport route, address local flooding concerns and create valuable wildlife habitat.

Overview

Beside the West Coast main line at Thrimby was a stretch of the River Leith that didn't function as a natural river should. Historically straightened, it didn’t provide good conditions for wildlife to thrive or help protect the surrounding land and buildings from flooding.

The river flowed at the foot of the embankment of a major railway line, a little too close for comfort for the 46 passenger trains and seven freight trains that go past every 24 hours – carrying up to 18,500 tonnes of medical supplies, bananas, pasta, loo roll and other essentials over the England-Scotland border. People depend on this service to run all year round without interruption. Restoring natural river processes could be the answer.

Designed by environmental consultancy, AquaUoS, with work carried out following Covid-19 guidelines by a local contractor, Metcalfe Plant Hire, work began to cut a new 1km meandering or ‘wiggling’ river channel that flows away from the railway line. The new river is 33% longer than the previously straightened river.

Other features found in natural rivers and on floodplains were also introduced to slow the flow and/or store more water during times of flood and drought.

These features will help to directly reduce flood peaks at the farm itself, as well as downstream flood risk by storing more flood water here, further upstream. The meanders and in-stream features such as riffles will provide essential habitat for fish and insects. Moving the river away from the railway embankment will protect it from erosion and the effects of flooding.

Challenge

The River Leith flows at the foot of the embankment of the West Coast main line, posing a risk to this major transport route from erosion of the embankment and flooding.


Some of the farm buildings have also suffered from flooding in recent years.

Approach

This project will restore the natural features and processes of the river Leith, in order to provide biodiversity and natural flood management benefits.  The natural flood management measures will slow the flow of water through the site and create additional storage for water during high flows. A new, remeandered stretch of river will move the river away from the railway embankment.

Features found in natural rivers, such as riffles and pools will be installed to provide habitat to increase biodiversity.

Job done
  • 740m of straightened river channel turned into 1.01km of meandering channel away from the railway track.


  • 0.2ha of floodplain storage created


  • 6ha of floodplain reconnected.

Lev Dahl, ERT River Restoration Manager:

This is a really exciting project that is going to provide a huge range of benefits – increasing habitat, protecting the railway and reducing flood risk. As the project matures, it will also provide homes for a range of birds and mammal species.  All of these benefits are set within a working sheep and beef farm and provides a great example of how food production, nature conservation and the transport sector can work hand in hand.

Image gallery

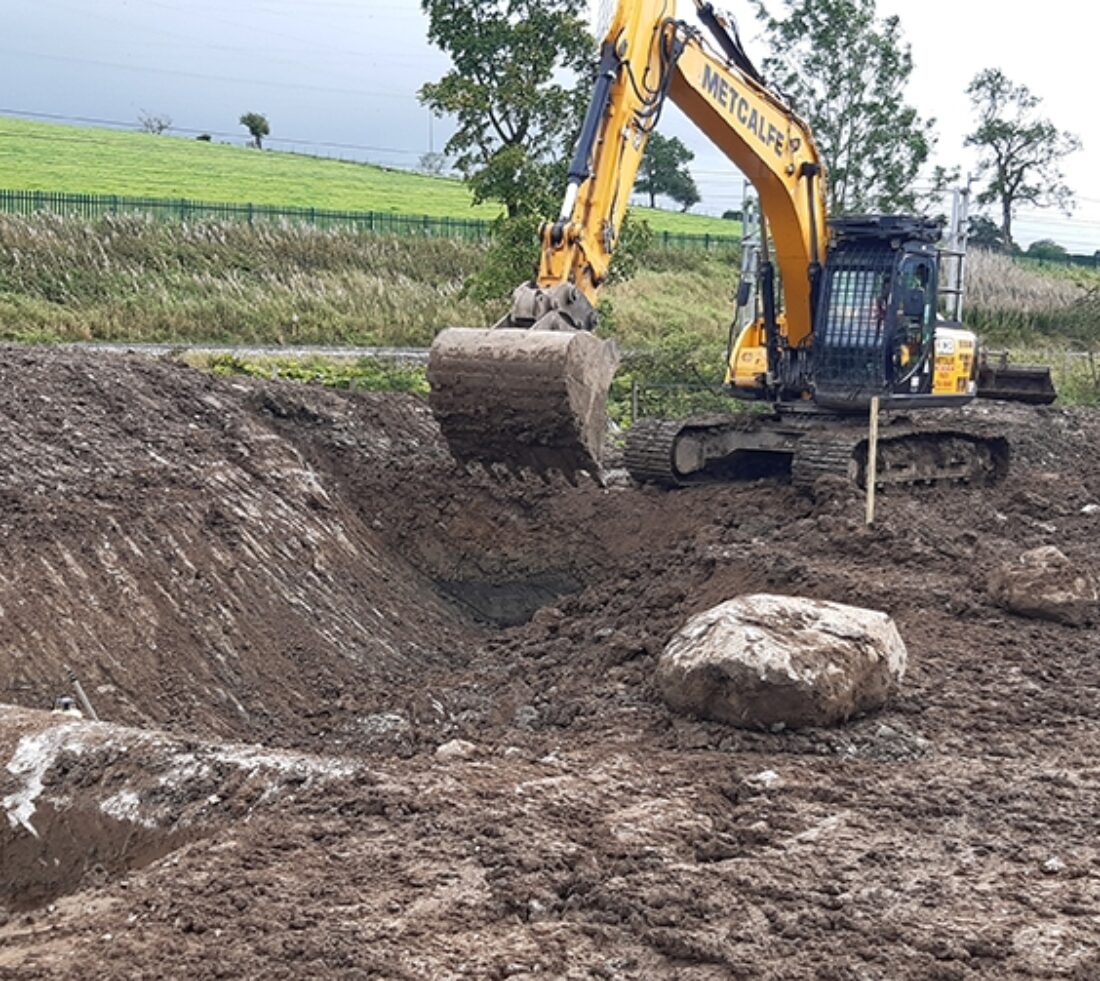

View across muddy soil excavation to heavy plant digger.

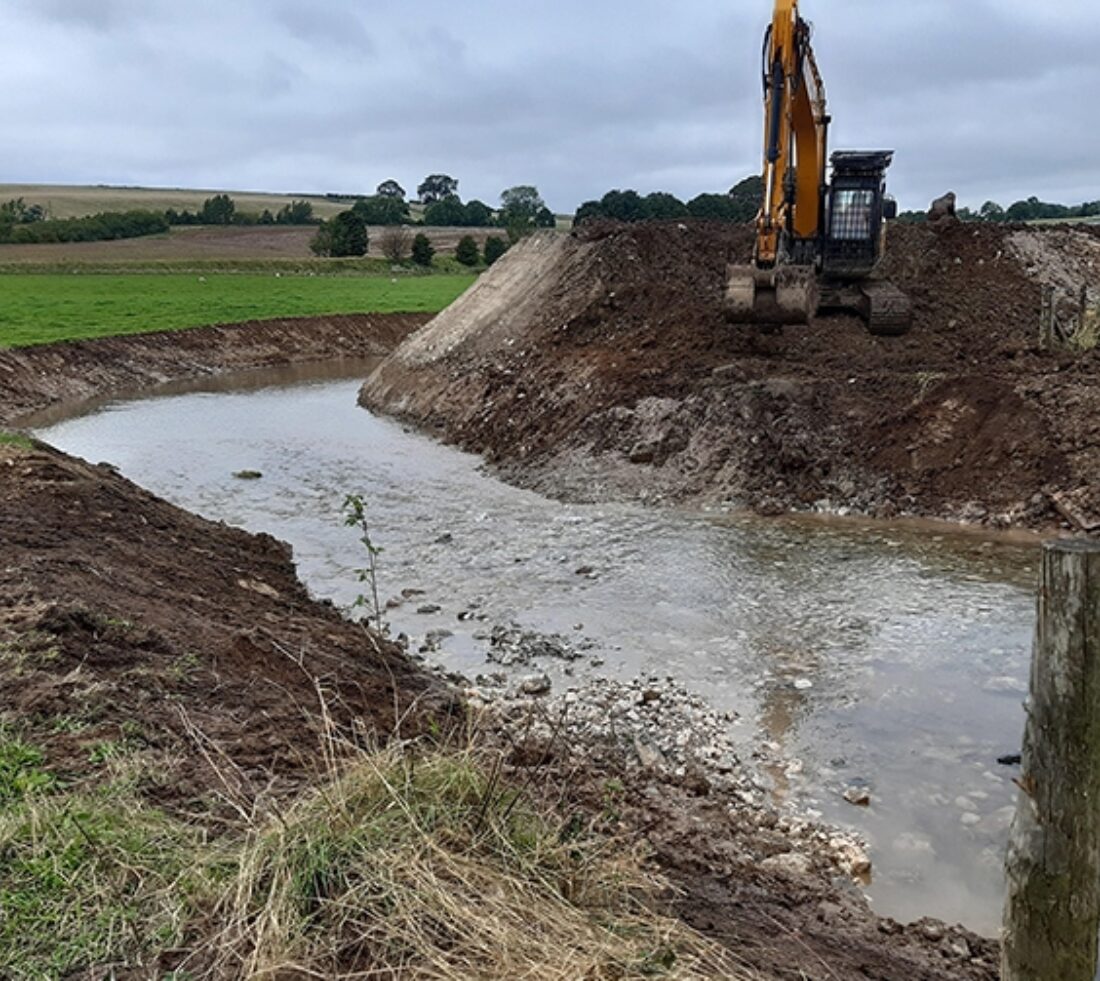

View across flat green field of a wide water channel excavation.
View across water channel to heavy plant machinery on opposite bank of excavated earth.

Funding

This major partnership project was being delivered as part of the award-winning Cumbria River Restoration Programme, which was one of the biggest and most successful restoration programmes in the UK. It is one of many being delivered across Cumbria, which aimed to safeguard our protected areas, protect downstream communities, as well as boost diversity and create a more diverse range of habitats for fish to thrive. Led by the Environment Agency with Natural England, Eden, South Cumbria and West Cumbria Rivers Trusts. RSPB and the National Trust.
